Charcoal Production line

MOQ: 1 Set /Sets
Brand: LONGER MACHINERY

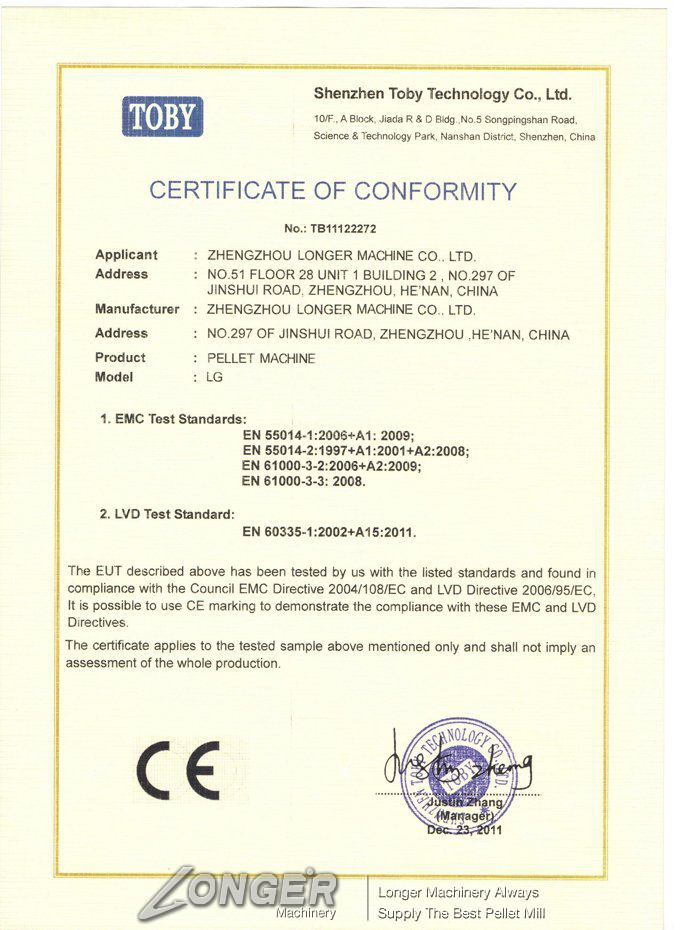

Certification: CE
Supply Ability: 100 Sets Set/Sets Per Month
PAY METHOD: WEST UNION L/C T/T CASH
Warranty Time: 12 Months
LOADING PORT: Qingdao Port
Country Of Origin: China
  • Hot sale Charcoal Production line
  • Charcoal Production line
  • Charcoal Production line
  • Hot sale Charcoal Production line
  • Hot sale Charcoal Production line
  • Hot sale Charcoal Production line
Hot sale Charcoal Production line is mainly using the rural corn stover, corn cobs, branches, leaves, sawdust as raw material to produce charcoal.
It can process all kinds of straw and branch. It can produce the high efficiency charcoal.
Automatic charcoal rural corn stover, corn cobs, branches, leaves, sawdust as raw material, after crushing pressure, increasing the density molding, is often said that "charcoal" "charcoal", due to be replaced traditional coal, so called "straw coal." It is a new fuel.This production line mainly is using the rural corn stover, corn cobs, branches, leaves, sawdust as raw material to produce charcoal.
Feature:
The process for producing wood sawdust charcoal briquette as follow:
a. Crush the raw material into small pieces (diameter is about 3-5mm)
b. Dry the material by machine or dried it in the sun, till the moisture is less than 12%
c. Put the material into feed let of briquette machine
d. Produce the briquette stick from biomass material without any additive
e. Carbonized the briquette stick
It can use many kinds of straw and branch as raw Material such as:
1.straw        2.sugarcane residue           3.coffee husk          4.cotton stalks
5.tobacco waste        6.mustard stalk        7.jute waste         8.bamboo dust
9.tea waste         10.wheat waste              11.palm husk          12.soybeans husk
13.rice husk       14.wood chips        15.agron waste ...

The total Charcoal Production line consists of:
1.Crushing Machine
2.Vibrating Screen
3.Sawdust Dryer Machine
4.Sawdust Briquetting Machine
5.Carbonizing Stove
Technical Data
1.Crushing Machine
Model LGF-2
Capacity  700-800 kg/h
Material Size ≤200 mm
Motor 11 kw
Size  1250*700*2000 mm
Weight 400 kg

2.Vibrating Screen
Model LG-2
Screen size 500*1500 mm
Grit size 3-4 mm
Motor 0.8 KW
Output: 5-6 T/H
Dimension 2640*808*848 mm

3.Sawdust Dryer Machine
Model LGH-1 LGH-2
Productivity 400-650 kg/h 800-1000KG/h
Temperature of heating air 180℃-250℃ 180℃-250℃
diameter of feed in(mm) ≦5 ≦5
Motor power 4 kw 7.5kw

4.Sawdust Briquetting Machine
Model LGZB-1 LGZB-2 LGZB-3
Capacity ( kg/h) 160-200 220-260 280-320
Motor 11 kw 15 kw 18.5 kw
Briquette’s diameter (mm) 40mm-60mm 60mm-70mm 60mm-80mm
Dimension (mm) 1700*660*1300 1860*800*1360 1900*900*1450

5.Carbonizing Stove
Model  Power Capacity Furance temperature Size
LGTH-20 1.5kw 1T 450℃ 2300×1600×2000mm
