- Vertical Revolving Arm Mixer
-
- MOQ:1 set /Sets
- Brand:LONGER MACHINERY
- Certification:CE
- Supply Ability:100 sets/month Set/Sets Per Month
- PAY METHOD:WEST UNION L/C T/T CASH
- Warranty Time:12 Months
- LOADING PORT:Qingdao Port|Tianjin Port
- Country Of Origin:China
- Features
- Technical Data
- FAQ
- Case

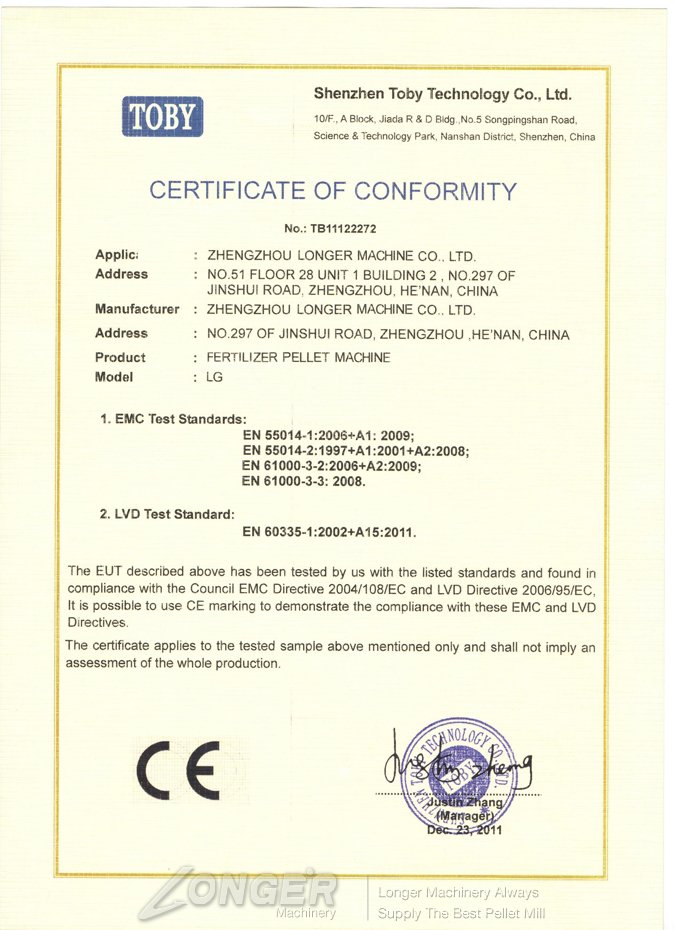

- Certification

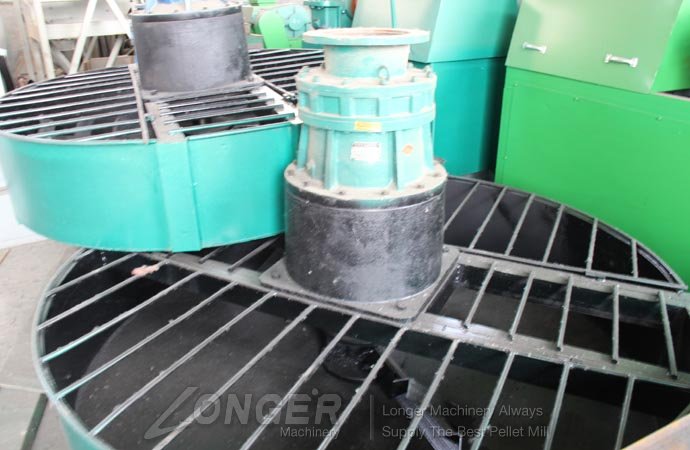

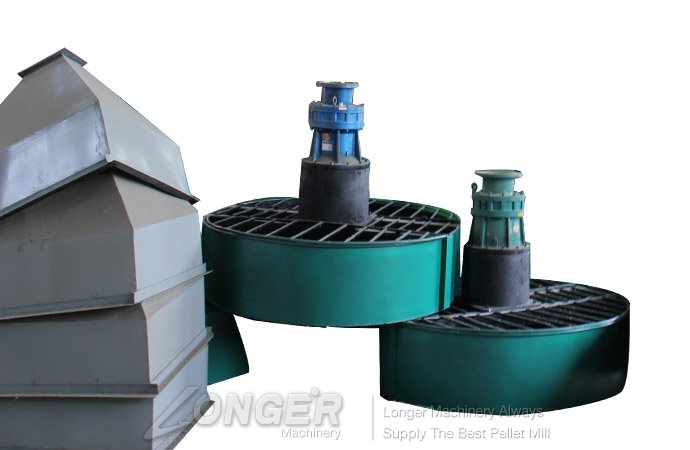

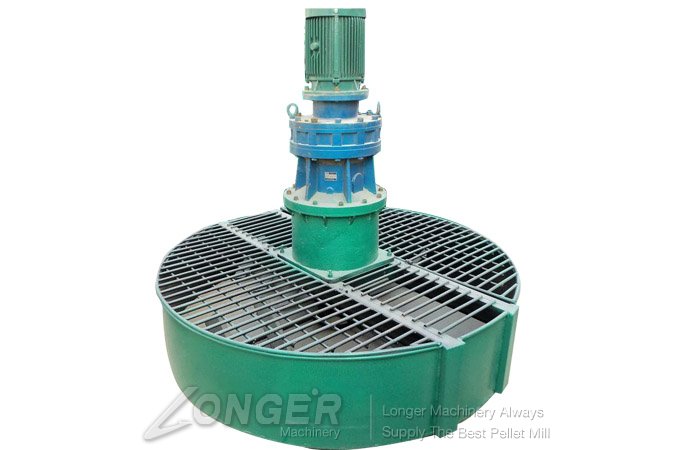

Vertical Revolving Arm Mixer is also called roller pan mixer.This machine is mainly used for mixing and stirring powder or granule.The internal of the pan is made of PP or stainless steel,So it is not easy to adhere material,antiseptic and wear-resisting.The base of the machine is relatively shallow,and all the parts are on the ground,thus it is very easy to service and operate.The transmission adopts the cycloidal pin gear speed reducer with the merits of compact structure, stir well, convenient discharging.
| Model | Power(kw) |
Maximum Capacity (m³/h) |
Dimension（mm） |
| LG-1500×350 | 5.5 | 3-5 | ￠1500×1100 |
| LG-1800×400 | 7.5 | 5-8 | ￠1800×1200 |
| LG-2000×400 | 11 | 8-10 | ￠2000×1200 |
| LG-2200×400 | 15 | 10-15 | ￠2200×1300 |
| LG-2500×4000 | 18.5 | 15-18 | ￠2500×1400 |
1.
ASK:What is the function of this machine?
ANSWER:This machine is mainly used for mixing and stirring powder or granule.
2.
ASK:What is the max capacity this machine can reach?
ANSWER:According to different mixing materials,the capacity may be different.
You can calculate the capacity according to the proportion and mixing bucket volume.
3.
ASK: Will your company supply the technical installation of the production line?
ANSWER: Yesthere are installation brochure and manual operationif it is neededwe can also send our technicist to abroad for help.
4.
ASK: What about the guarantee terms?
ANSWER: Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes man-made problems etc will be responsible for clients-self.
