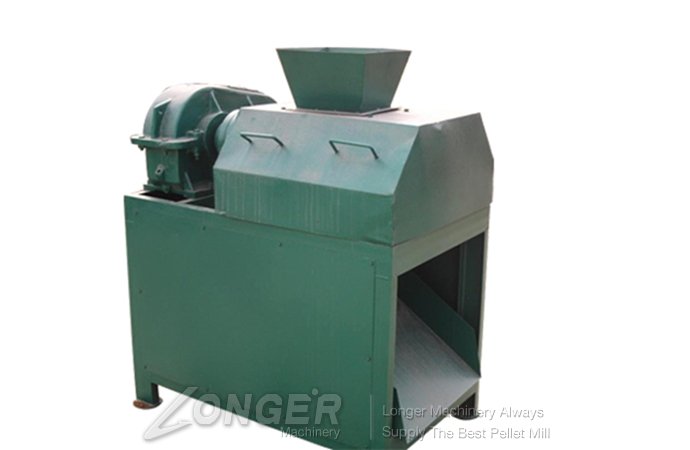

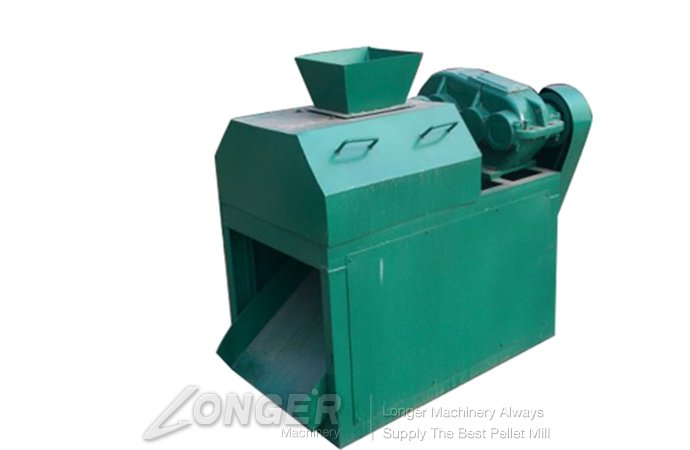

The Roll-type squeezing granulator,which is no dry normal production process,a shape,capacity can be 1-1.5t/h,1.5-3t/h,with advantage of low investment and quick, good economic returns.



Dry material powder is fed from the top of the equipment, desaeration, screw-pre-press, enter into the gap between the two rollers that are rotating in opposite directions.



The pressed material falls down because of surface tension and gravity when passes through pressing section. The noddies shaped material then enters into breaking machine, been smashed by rotating knife.



The smashed material enters into granulator, and then the particles and part of powder material enters into sieve by the rolling knife, and then the product is separated.

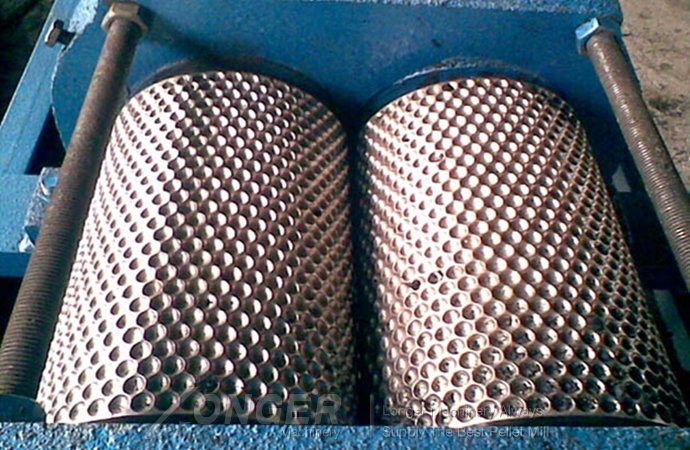

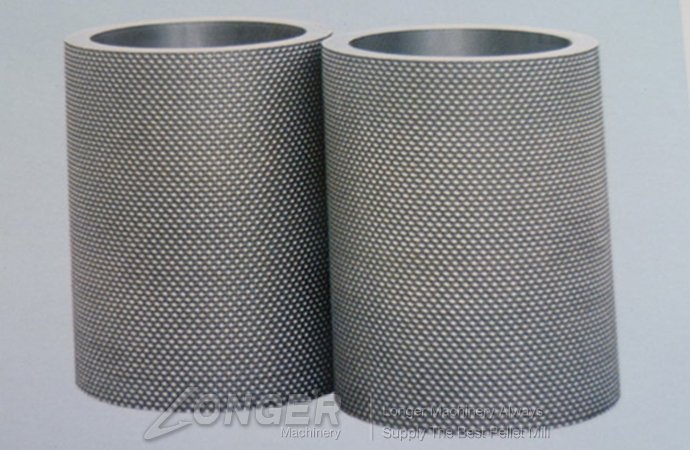

The product up to standard will be conveyed to product silo by conveyor; the material under the sieve should be fed back and should be pressed again. The pressure might adjust by the hydraulic oil cylinder according the requirements of granulation. Sheet, bar and other shape of product might be procured by choose the relative shape of the grooves on the surface of the roller.

Question: How does the machine work?

Answer:

Dry powders will be squeezed and shaped by the double roller force when added to the machine. After crushing and screening, granule will be pelletized.



Question: what are the advantages of the machine?

Answer:

Wide application to raw materials like compound fertilizer,organic fertilizer,feed,etc. Can be used to process compound fertilizer of various concentrations(including organic fertilizer,inorganic fertilizer,biological fertilizer and magnetic fertilizer) .



Popular in domestic fertilizer series production such as tombarthite fertilizer,ammonium bicarbonate fertilizer,ammonium persulfate fertilizer,etc.



Its applicable raw materials are so wide that it can be used for the prilling of compound fertilizer, medicine, chemicals and forages,granulation rate is high.



The machine can produce all kinds of concentration and types fertilizer(including organic fertilizer, inorganic fertilizer, biological fertilizer, magnetic fertilizers, etc.) compound fertilizer,especially the rare earths, potash, producyion series compound fertilizer granulation.

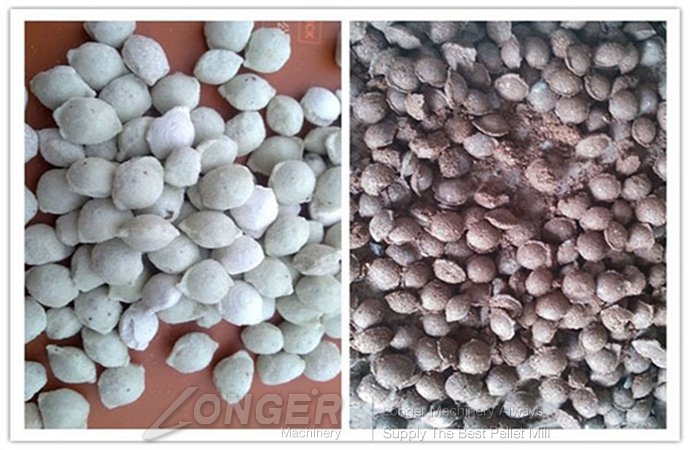

Roll-type squeezing granulator uses squeezing principle to form fertilizer particles with diameters of 3.5-10mm in one time.It has higher granulating ratio of over 85%. Double roller fertilizer granulator is the most popular granulating methods in no-drying (2%-5% moisture content) fertilizer process at room temperature.Less cost and quick granulating,thus it can bring fertilizer investment a good economic returns.



Question: Will your company supply technical installation guidance of the production line?

Answer:    Yes,installation brochures and operation manuals with detailed description will be provided.If necessary, we will send our technicians abroad for further help.



Question: What are the payment methods?

Answer:    Western union,T/T,LC are accepted.



Question:What if customers know little about import processing?

Answer:   Our factory has rich experience in export.We will assist customers with needs step by step, from placing orders to receiving poutry feed manufacturing equipment.
