Automatic Screw Oil Press Machine

MOQ: 1 /Sets
Certification: CE
Supply Ability: 100 Set/Sets Per Month
Warranty Time: 12 Months
Country Of Origin: China
  • Automatic Oil Press Machine
  • Automatic Oil Press Machine
  • Automatic Oil Press Machine
  • Automatic Oil Press Machine
  • Automatic Oil Press Machine
  • Automatic Oil Press Machine

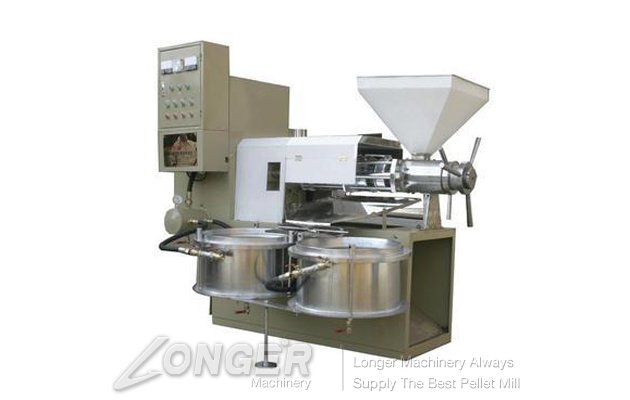

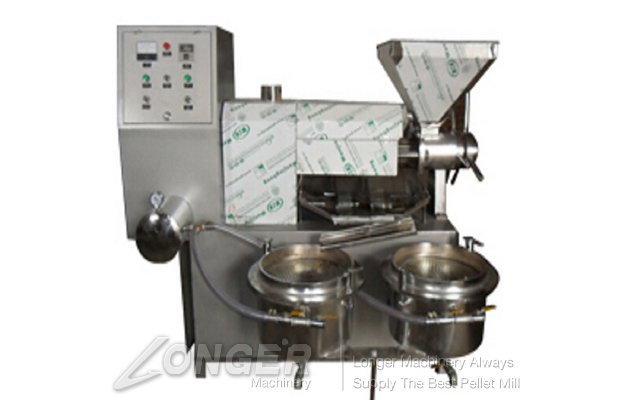

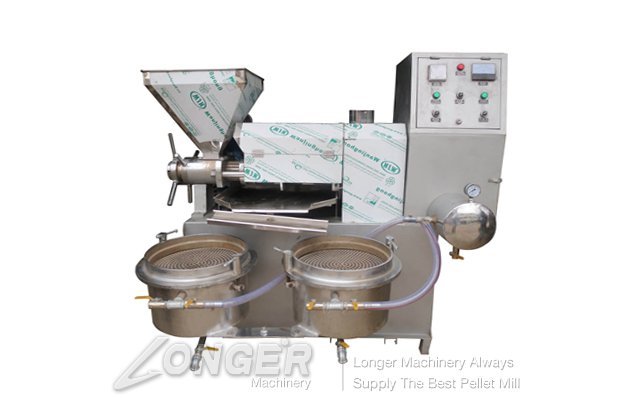

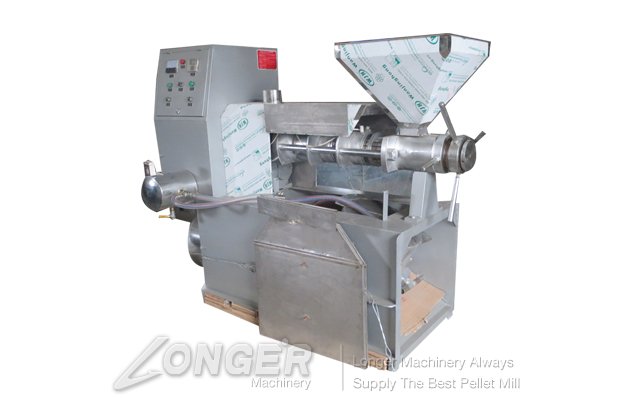

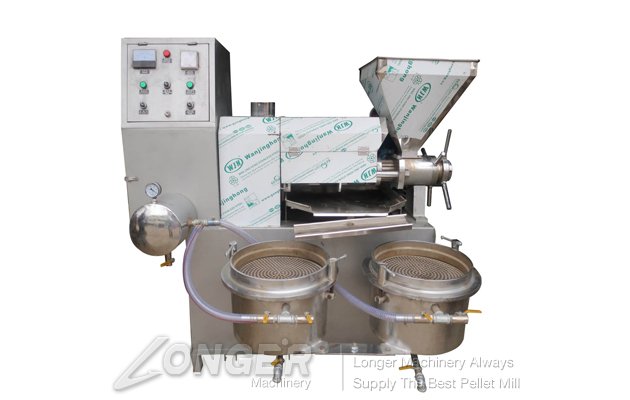

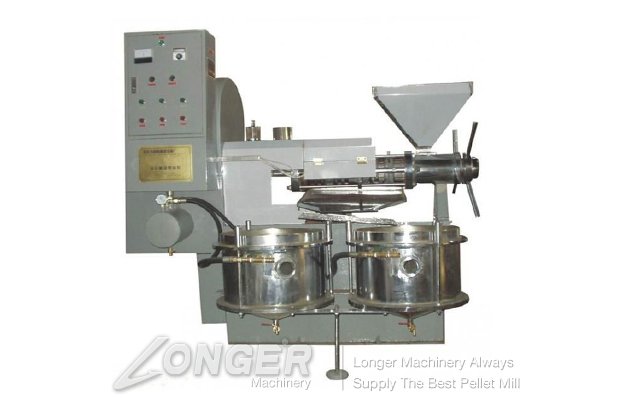

Automatic spiral oil press is mainly composed of electric control, automatic heating, adjustment, transmission and vacuum oil filter components, which is suitable for peanut, soybean, rapeseed, cotton seed,sunflower seed, grape seed, sesame, tea seed, walnut, corn germ, wheat germ, rice bran, seeds of hippophae rhamnoides and so on.
Under the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings. Either big scale and small scale of oil press machine, they have similar theories in screw expeller pressing. Because the screw type oil press machine is mainly used by extrusion theory, so it is also called as oil extruder or oil extrusion process.
Advantages of machine
1.Oil press machine is fully adopted mechanical driven, it connects a series small oil processing equipment together to realize continuous oil extraction with easier operation and higher rate of oil yield. The oil press machine or you can say small oil pressing machine is able to process a great many of vegetable oil seeds, such as soybeans, peanuts, cotton seeds, sunflower seeds, sesame seeds, palm kernel, coconut etc. Small investment, fewer land space, labor saving and wide application, the small oil press machine is your first choice to start the oil making business.ulti-function automatic oil press machine Advantages
2.All working processes are controlled by the controlling panel
3.If one drum is full it would change to use the other and automatically put the oil out of the drum.
4.Before pressing, some parts of the oil press machine such as the press chamber, press screw and press ring will be pre-heated.
5.During pressing, the press can filter the oil in due time. One operator is enough to get quality oil.
6.Oil yield is higher than common oil press.
7.Easy to operate and maintain.
8.We also have Semi-Automatic Seed Oil Press Machine for your selection.
Technical Data
Model LGYL-80A LGYL-100A LGYL-120A LGYL-130A LGYL-165A
Screw diameter 80mm 100mm 120mm 130mm 165mm
Capacity(t/24h) 3-4 5-6 6-8 10-12 18-20
Motor(KW) 5.5 7.5 11 15 22
Weight (kg) 700 1000 1400 1700 3500
Size(mm) 1480*630*1570 2200*810*1850 2200*1650*1750 2350*840*1850 2600*1920*2300
