Cylinder Dryer

Introduction: Thewetmaterialsinthedryermachinewillbekickedupandthrowndownrepeatedlybyshovellingplateinthedrumwall,andinthefallingprocesswillbebrokenintofineparticlesbybreakupdevice,specificareaisincreasedbyalargemargin,andthenthematerialsha

Model: 1 set Capacity: Function: Brand: LFM Support Customization: Yes
Features

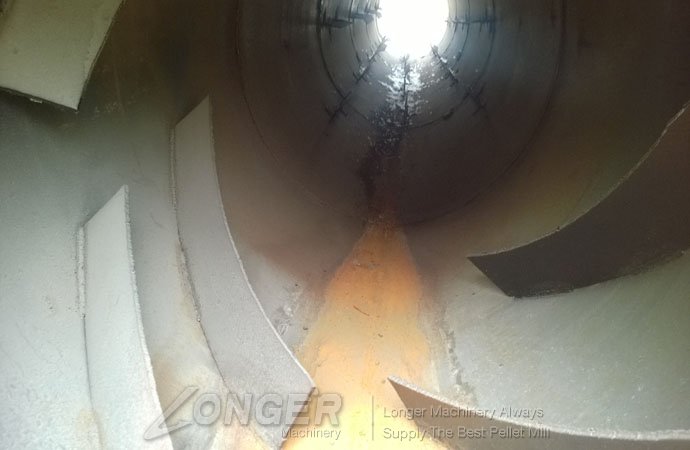

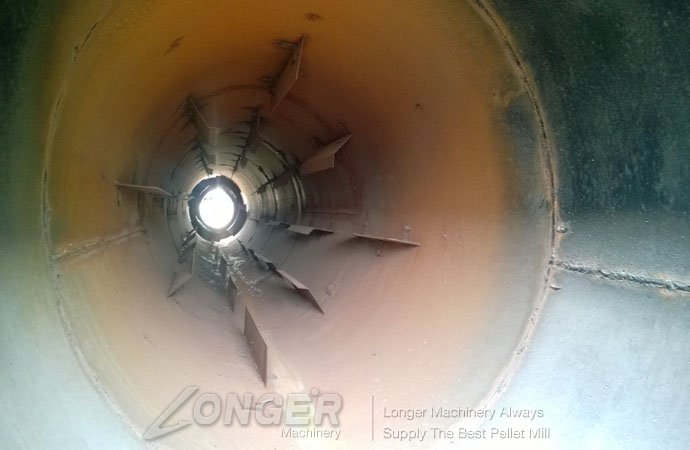

    The wet materials in the dryer machine will be kicked up and thrown down repeatedly by shovelling plate in the drum wall, and in the falling process will be broken into fine particles by break up device,specific area is increased by a large margin, and then the materials have a a good contact with hot air to reach dry.

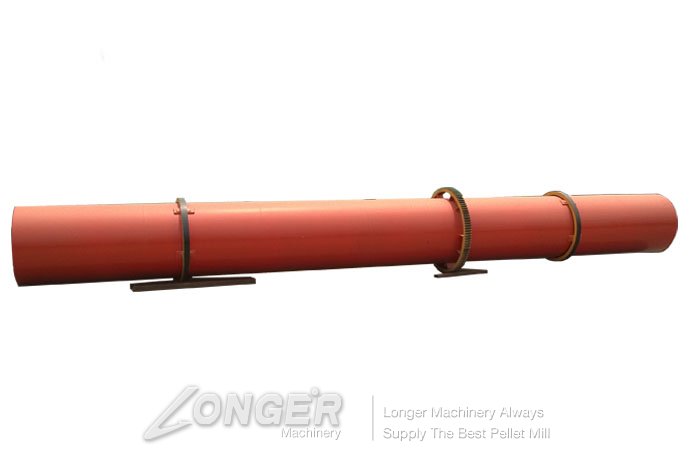

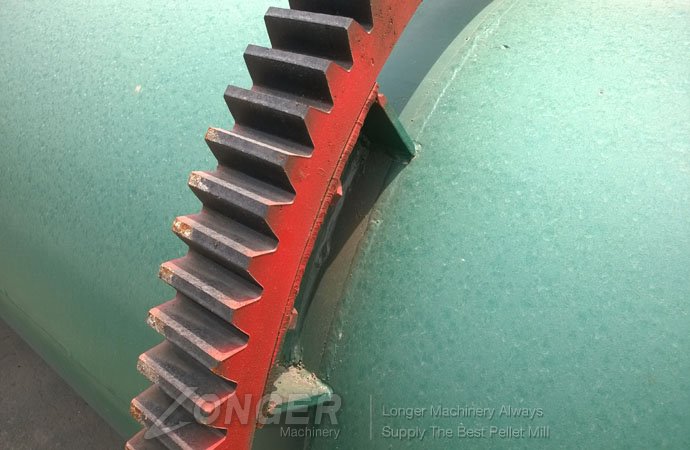

    This machine are composed of revolved device, raising board, gearing device, support device
and seal ring etc.

Scope of application:
1.Chemical,miner and metallurgy industry etc.Such as ore,Such as ore, slag, coal, metal powder, clay, diatomite and kaolin.

2.Agriculture, feed, fertilizer industry.Such as straw, grass, leaves, fish meal, corn sauce, starch residue, lees, medical, pomace, soy sauce residue,bagasse,turf,organic compound fertilizer, sludge, waste of aquatic products, food factory waste,abattoir waste,organic fertilizer,inorganic fertilizer,and ammonium phosphate fertilizer sulphur.

3.Dry powder with special requirements and particulate material,Such as kinds of crystal,light calcium carbonate,activated clay,Magnetic powder, graphite, mineralmud, clay,Lime mortar, mineral mud, phosphorus slag, and red mud of aluminum plant.

4.Materials need to be dried in low temperature continuously and in a large amount.
Technical Data
Model Power(kw) Output(m³/h) Size(Dia*Len.mm)
LG-D1 5.5 0.2-1 600×6000
LG-D2 5.5 1-1.5 800×8000
LG-D2 7.5 1.5-2 1000×10000
LG-D5 11 2-5 1200×12000
LG-D8 15 5-8 1500×15000
LG-D12 18.5 7-12 1800×18000
LG-D14 22 8-14 2000×20000
LG-D218 37 12-18 2200×22000
LG-D20 45 15-20 2400×24000
LG-D25 75 20-25 2800×28000
LG-D30 90 25-30 3000×30000
