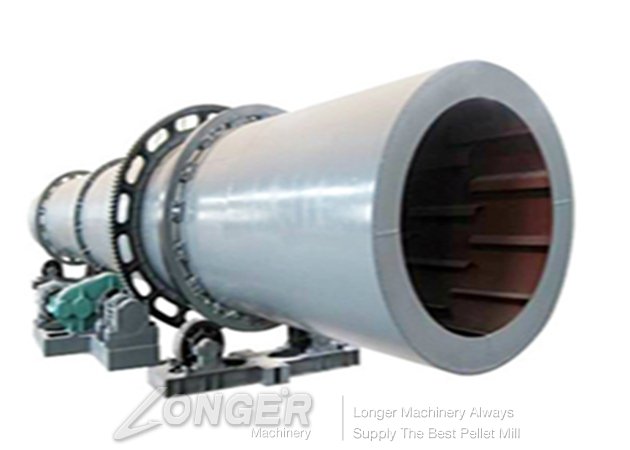

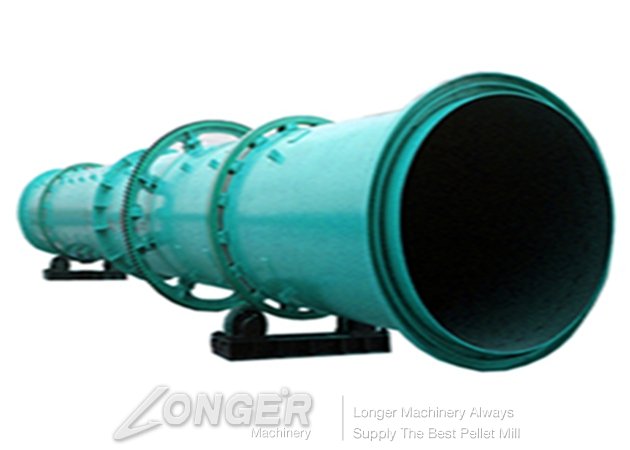

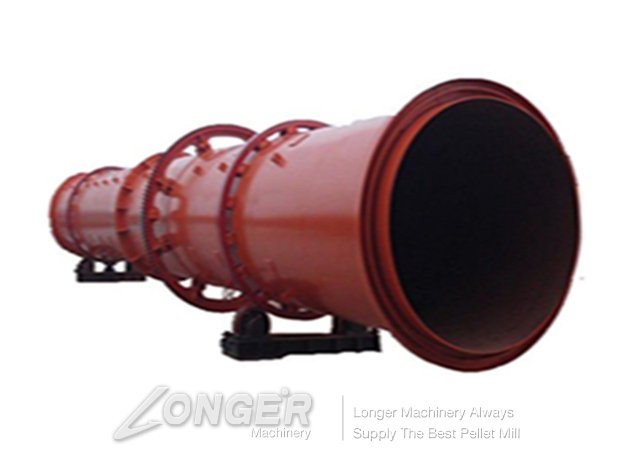

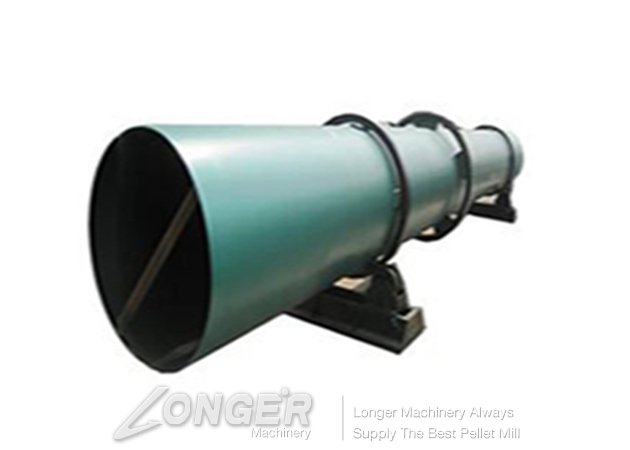

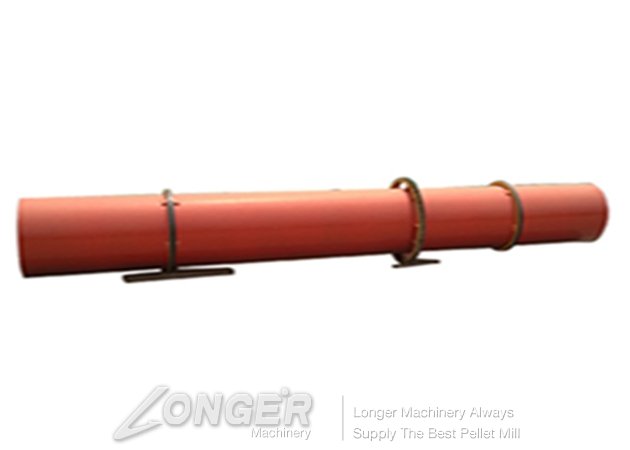

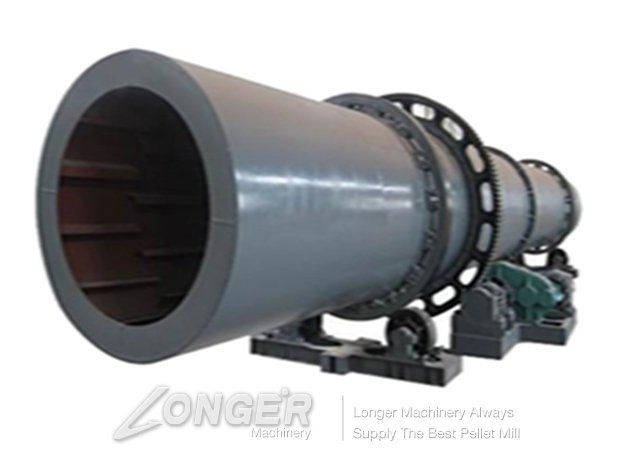

Cylinder Dryer

As we can see, the Cylinder Dryer machine is named for this machines cylinder shape,this Cylinder Dryer machine is used for drying certain humidity and granularity of fertilizer, but also can be used for drying other materials. The wet mate

WhatsApp: 008613015518550 Email: inquiry@longerinc.com Country Of Origin: China Mission: Make food production easier and safer
Features
              As we can see, the Cylinder Dryer machine is named for this machine’s cylinder shape,this Cylinder Dryer machine is used for drying certain humidity and granularity of fertilizer, but also can be used for drying other materials.
            The wet materials or fertilizer pellet in the dryer machine will be kicked up and thrown down repeatedly by many shoveling plats in the drum wall of this cylinder dryer machine, next, in the falling process the wet materials or fertilizer pellet will be broken into fine particles by break up device of this cylinder dryer machine, in this way, the specific area will be increased by a large margin, and then the materials or fertilizer pellet will have a a good contact with hot air and finally to reach the dry condition you want, it is the most popular drying machine in the line of business.This Cylinder Dryer machine are composed of the revolved device, raising board, gearing device, support device and seal ring and other parts.
Technical Data
Model Power(kw) Output(m³/h) Diameter(mm) Length(mm)
LG-D1 5.5 0.2-1 600 6000
LG-D2 5.5 1-1.5 800 8000
LG-D2 7.5 1.5-2 1000 10000
LG-D5 11 2-5 1200 12000
LG-D8 15 5-8 1500 15000
LG-D12 18.5 7-12 1800 18000
LG-D14 22 8-14 2000 20000
LG-D218 37 12-18 2200 22000
LG-D20 45 15-20 2400 24000
LG-D25 75 20-25 2800 28000
LG-D30 90 25-30 3000 30000
The angle is 2-5º, the Import air temperature is 150-250℃, Outlet air temperature is 60-80℃.
