Automatic Bag-sewing Machine

MOQ: 1 /Sets
Brand: LONGER MACHINERY
Certification: CE
Supply Ability: 100 Set/Sets Per Month
PAY METHOD: WEST UNION L/C T/T CASH
Warranty Time: 12 Months
LOADING PORT: Qingdao
Country Of Origin: China
  • bag sewing machine
  • bag packing machine
  • pouch sewing machine
  • bag sewing machine
  • bag sewing machine
  • bag sewing machine
  • bag sewing machine

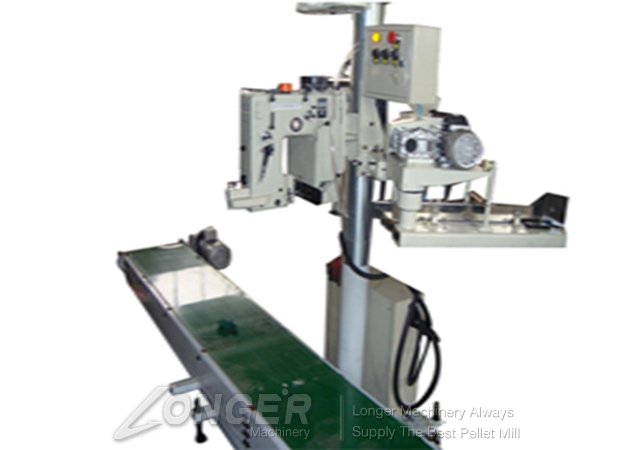

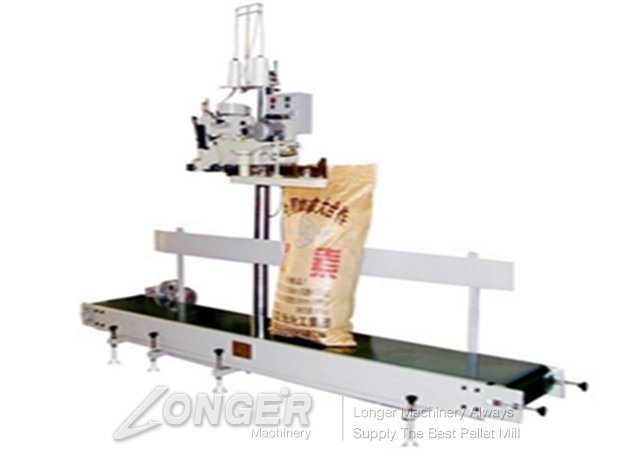

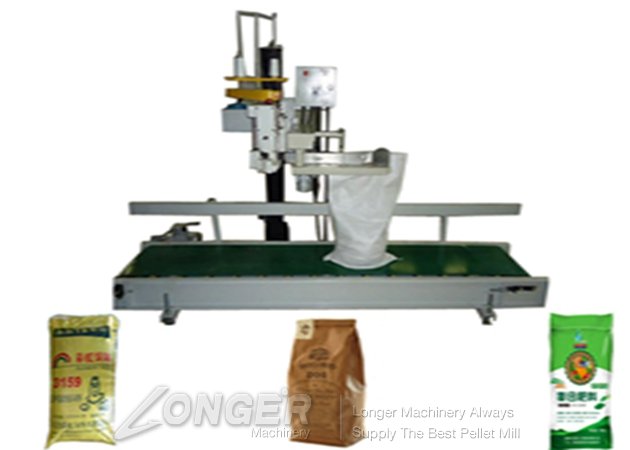

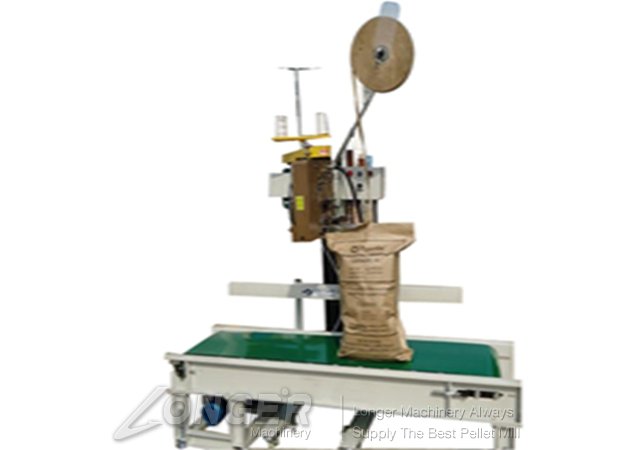

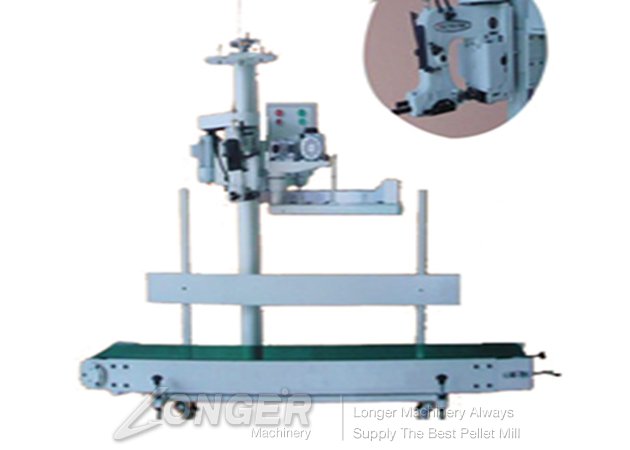

Automatic Bag Sewing Machine using the new international pop production control system: high-precision measurement of high-speed dedicated control instruments, with a powerful, flexible and high reliability and greater scalability characteristics, adapt to repeat the height of the production process of continuous production.
Introduction:
Photoelectric switch control start and stop sewing machine, automatic cutting, automatic folding,Suitable for higher automation plants, feed mills, fertilizer plants, food processing plants, ports, terminals and other enterprises to realize the full M-woven materials, paper bags, bags and other automatic packet.
when the bag reaches the foot of the sewing machine, press the foot switch to start the sewing machine began stitching; sew each push the bag when the bag corner cutter cut braided line, release the foot switch sewing machine downtime.controlled by a foot switch to start and stop the sewing machine, concealed knife cut ,sewing machine, belt conveyor,support column,available for both plain sewn and crepe-tape bound closure. This closing system can be used with a range of conveyors or an existing conveyor,the filled bag is released onto the bag closing line conveyor which transports the bags to the bag closing line which comprises a sewing pedestal, in-feed device and sewing head for automatic start, stop and cut of the cotton chain thread.

Related Product: Semi-atuomatic Bag Sewing Machine
Technical Data
Model LG-35-6A
Bag Height 300-1000mm,can be adjust by the demand.
Power sewing machine 0.37 KW, folding machine 0.15 KW, conveyor 0.55 K W
Packing range 2.5-50kg
Voltage 380 v / 50 hz
Transmission speed 5-15m / min 300-600 bags / hour
Conveyor length 3m, can be customized according to the production
Air pressure 0.6 MP
Sewing thread cotton, polyester line (double)
Dimension 1190*900*2170mm
