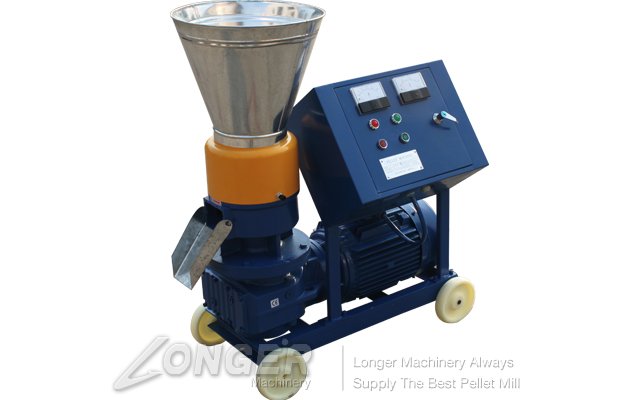

  • High Quality Chicken Feed Pelletizer

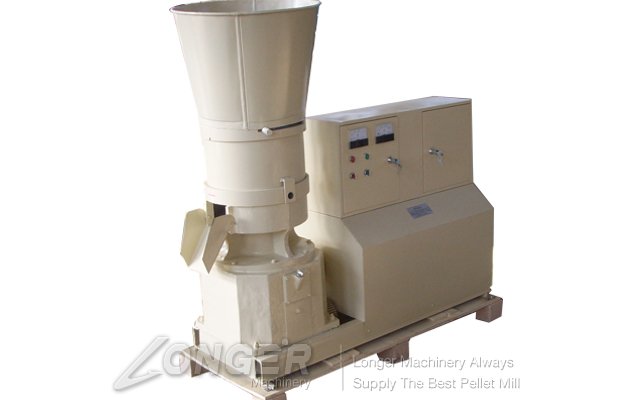

  • High Quality Chicken Feed Pelletizer

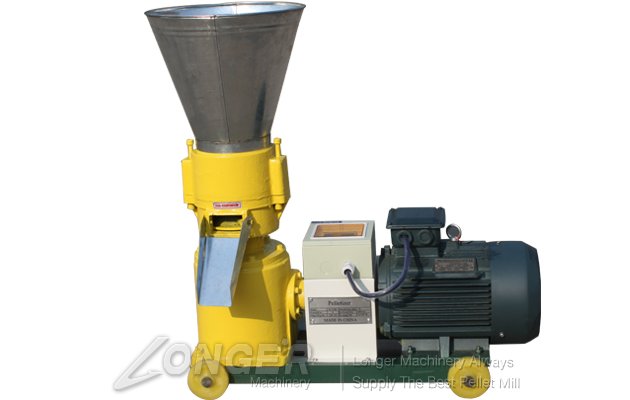

  • High Quality Chicken Feed Pelletizer

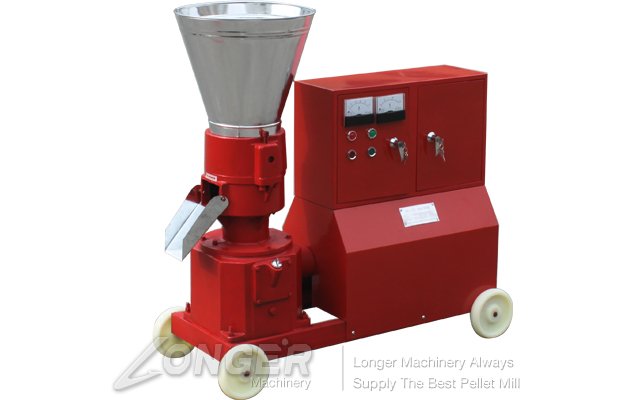

  • High Quality Chicken Feed Pelletizer

Poultry Feed Pellet Machine|Flat-die Feed Machine

LG Series flat-die pellet machine is our companys new design, adopt to domestic advanced technology,once forming technology. It has the advantage of less investment, easy to operate,and easy to maintain,with the high pellet forming rate and

WhatsApp: 008613015518550 Email: inquiry@longerinc.com Country Of Origin: China Mission: Make food production easier and safer
Features
Electric Flat-die Poultry Feed Pelletizer is with advanced once forming technology. It has the advantage of less investment, easy to operate and to maintain,with the high pellet forming rate and so on. This chicken feed pelletizer can be use corn,soybean,grass,straw,rice husk etc as materials, perfect for making food for chicken, cattle, dog, pig and so on.

Advantages:
1. With high capacity,low power consume,with low noise,working stable and Machine fatigue resistance is strong,and produce continuously, economic and durable.
2. All the machine is made of the qualitative materials and advanced coupling gear,beautiful appearance, compact structure,Wearing parts and key components of high quality steel plus wear-resistant materials.
3. Gearbox made of high quality gray cast iron materials, low noise, good shock absorption, mold plate and pressure rollers made of high quality steel, hardness 55-60HRC, case thickened by ribs, and increase the thickness of the casting, which greatly enhanced mechanical strength, to eliminate the housing breakage feed particle machine.
4. Non-perishable, deterioration, long-term storage.Also can improve the palatability and digestion and absorption functions of livestock and shorten the fattening of livestock, greatly reducing the cost of production of the majority of farming households.
5. Clients also can according to demand to choose different aperture to produce particles of different sizes,also depend on the material to choose different compression ratios of the mold plate, to produce livestock for different particles.
Technical Data
Model LGKL-120B LGKL-150B LGKL-200 LGKL-230 LGKL-260 LGKL-360
Capacity 60-100kg/h 90-120kg/h 200-300kg/h 300-400kg/h 400-600kg/h 600-800kg/h
Weight(Kg) 100 120 220 320 450 580
Packing Size(cm) 75*35*65 75*35*65 100*46*90 114*54*93 112*53*107 134*58*106
Motor (kw) 3 4 7.5 11 15 22
Die specifications 2.5-10mm 2.5-10mm 2.5-10mm 2.5-10mm 2.5-10mm 2.5-10mm
Dia of flat platform 120mm 150mm 200 mm 230 mm 260 mm 360 mm
