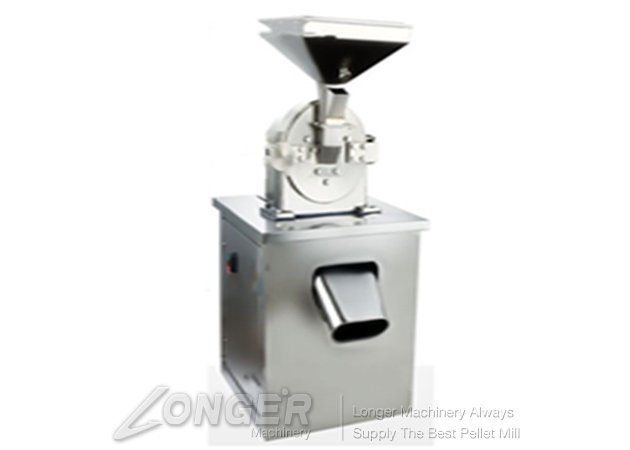

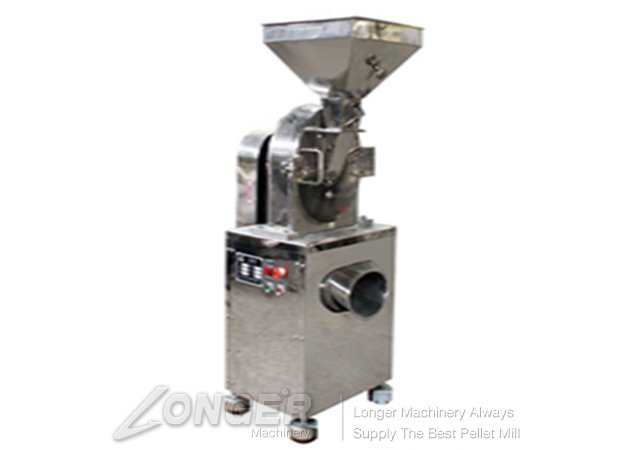

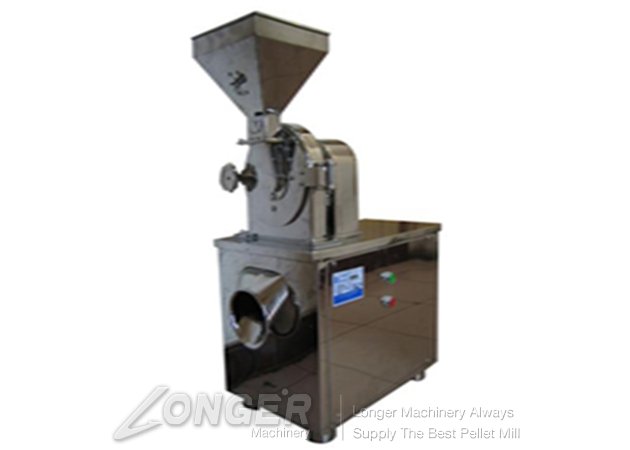

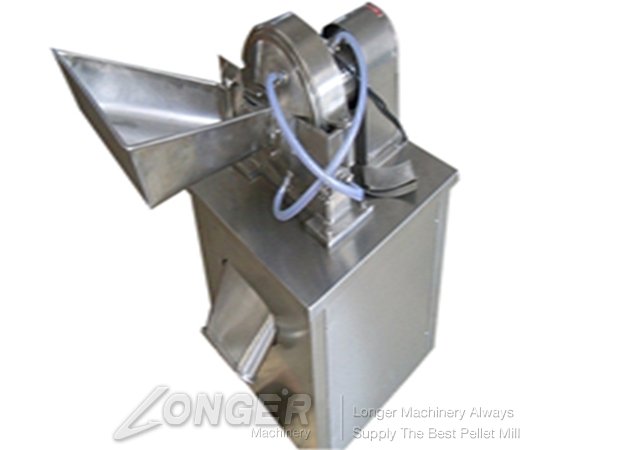

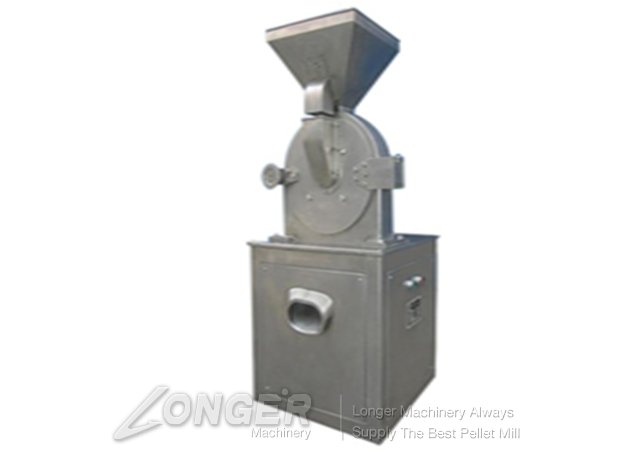

Stainless Steel Grinding Machine

MOQ: 1 /Sets
Brand: LONGER MACHINERY
Certification: CE
Supply Ability: 100 Set/Sets Per Month
PAY METHOD: WEST UNION L/C T/T CASH
Warranty Time: 12 Months
LOADING PORT: Qingdao Port|Tianjin Port
Country Of Origin: China

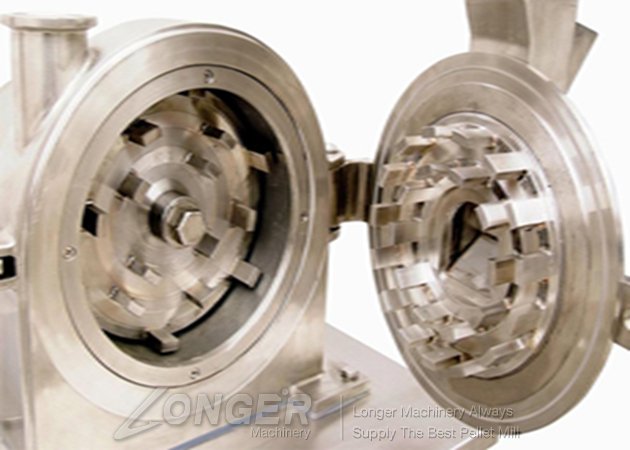

This machine uses the relative motion between movable and fixed fluted discs, the raw materials to be crushed undertakes the comprehensive actions such as impacted by teeth, friction, impacted between raw materials are crushed. Its features are simple and solid in structure, stable in operation, high crushed efficiency. The crushed raw material can be discharged through the grinding chamber. Moreover, different size of raw material to be crushed can be got through exchanging screen with different mesh.
It’s inner wall is processed finely, so it is smooth and level.
The machine has wide application, it’s wide used for pharmaceutical industry, chemical industry foodstuff industry, grain industry and so on.
The machine has the following advantages:
All the parts in the chamber which contact materials surficial parts are made of stainless steal, it’s in conformity with the requirements of state standard and meet the requirements of GMP
According to customer needs, may increase water cooling device and conveyor screw.Details pls contact us.




Technical Data

Model
Capacity(Kg/h) Work noise Thickness(mesh) Voltage(V) Power(KW) Speed of main shaft  Size(mm) Weight(kg)
LG200 30-120 <85 10-200 220/380 2.2 4200 480*520*1040 80
LG300 60-200 <85 10-200 380 5.5 4200 750*600*1260 180
LG400 80-300 <85 10-200 380 7.5 4200 780*700*1350 260
LG500 100-500 <85 10-200 380 11 4200 800*900*1550 320
LG600 500-1000 <85 10-200 380 15/22 4200 1200*1000*2000 520
