Stainless Steel Multi-functional Grinding Machine For Power

MOQ:1 Set/Sets
Brand:Longer Machinery
Pay Method:WEST UNION L/C T/T CASH
Warranty Time:12 Months
Supply AbilitySupply Ability:100 Sets
PortPort:Qingdao Port

•24/7 online support   •Certification:CE

Leave Message Get PriceGet Price
Product Details

Features of :

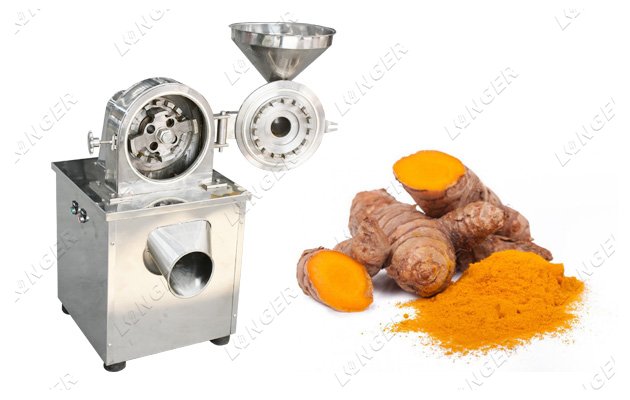

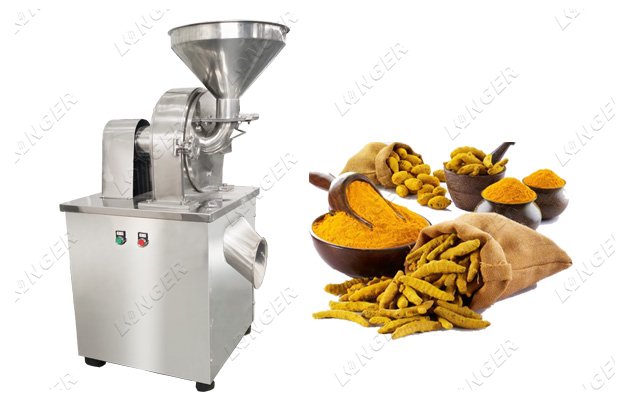

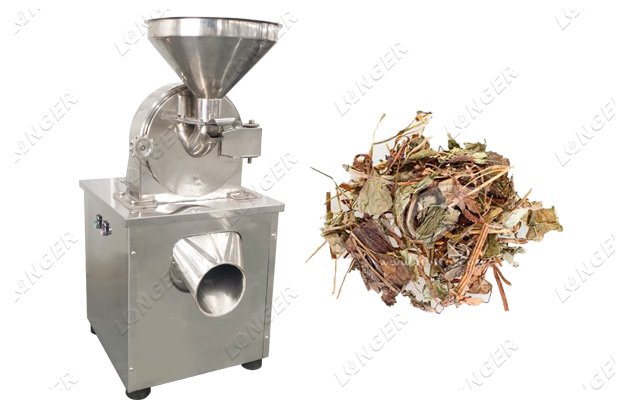

This Stainless Steel Multi-functional Grinding Machine also called Sugar grinder, salt grinder, herbs grinder, spice grinder, maize crusher/grain, rice crusher/grinder/grinding machine.
The machine has wide application, it’s wide used for pharmaceutical industry, chemical industry foodstuff industry, grain industry and so on.

Introduction of Spices Grinder Machine
This machine uses the relative motion between movable and fixed fluted discs, the raw materials to be crushed undertakes the comprehensive actions such as impacted by teeth, friction, impacted between raw materials are crushed. Its features are simple and solid in structure, stable in operation, high crushed efficiency. The crushed raw material can be discharged through the grinding chamber. Moreover, different size of raw material to be crushed can be got through exchanging screen with different mesh.
It’s inner wall is processed finely, so it is smooth and level.

Advantages of Multifunctional Sugar Grinding Machine
All the parts in the chamber which contact materials surficial parts are made of stainless steal, it’s in conformity with the requirements of state standard and meet the requirements of GMP
According to customer needs, may increase water cooling device and conveyor screw.


Technical Data of :

Model

LG--20B-C

LG-30B-C

LG40B-C

LG60B

Capacity(kg/h）

60-150kg/h

100-300kg/h

160-800kg/h

500-1500kg/h

Revolution of spindle

4500r/min

3800r/min

3400r/min

2800r/min

Grinding size

10-200 mesh

Crusher motor

4kw

5.5kw

11kw

15kw

Cleaner motor

0.75kw

Dimension (mm)

550*600*1250

600*700*1450

800*900*1550

1000*900*1680

Weight (kg)

250

320

550

680
