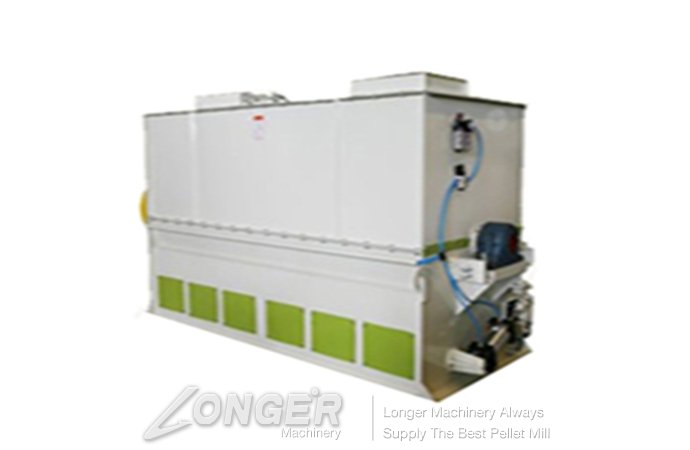

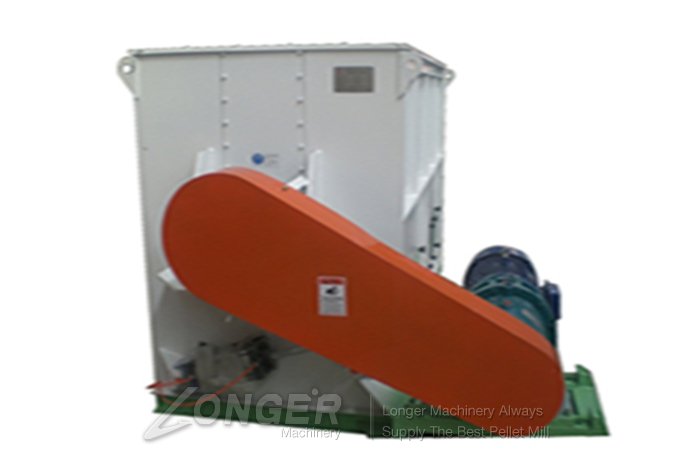

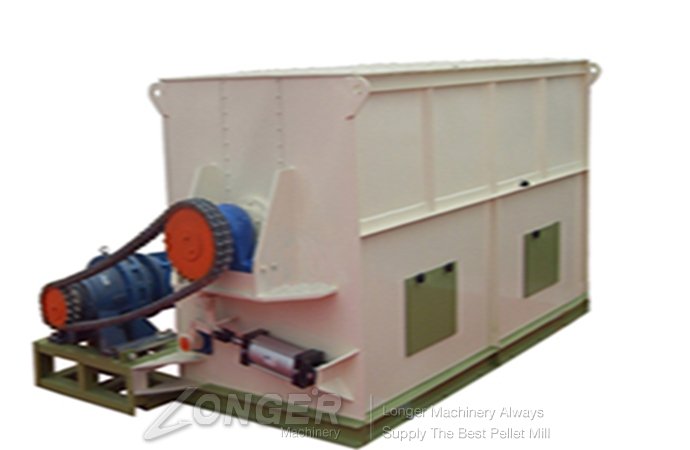

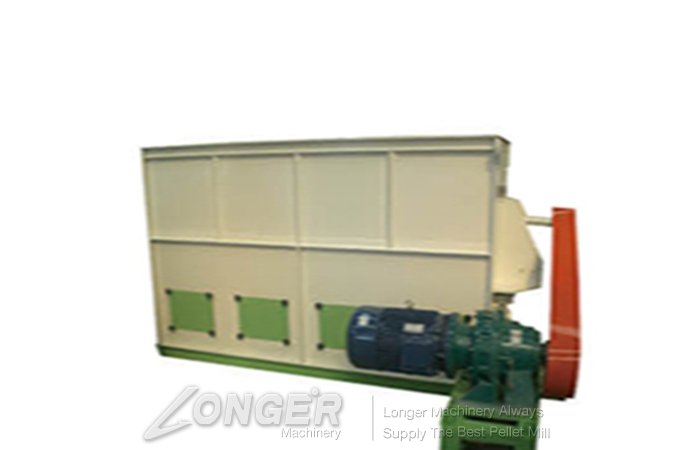

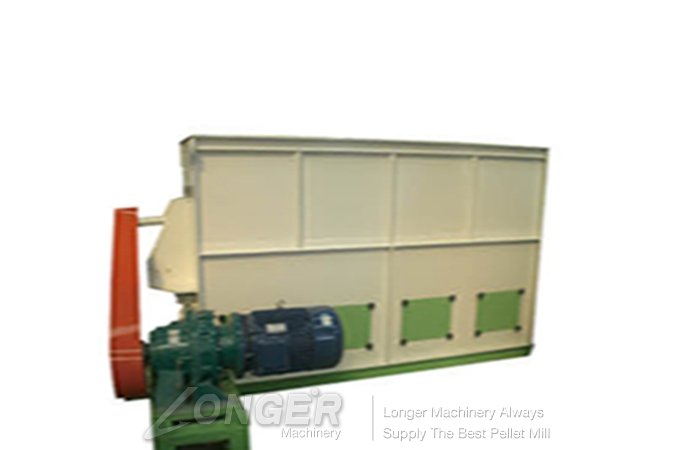

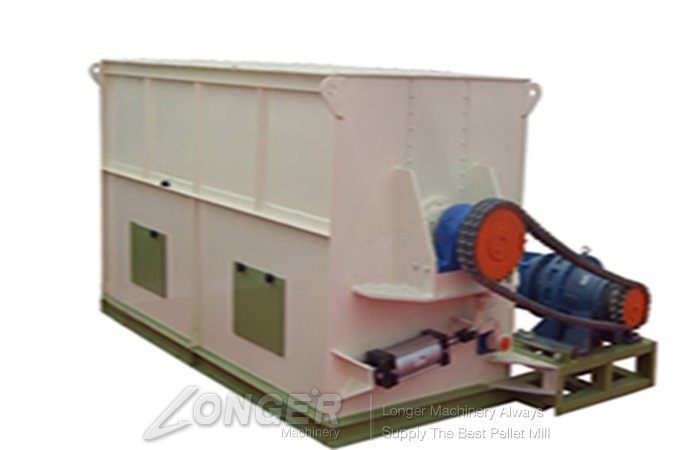

SLHY Single Shaft Screw Belt Mixer

MOQ:1 Set/Sets
Brand:Longer Machinery
Pay Method:WEST UNION L/C T/T CASH
Warranty Time:12 Months
Supply AbilitySupply Ability:100
PortPort:Qingdao Port|Tianjin Port

•24/7 online support   •Certification:CE

Product Details

Features of :

This single shaft screw belt mixing machine has the features of high mixing uniformity, less material residues inside machine. The mixing machine has humanized design and our mixing machine can be customized according to user needs, our customers can choose large open door or small open door, we also can make the machine with pneumatic opening, electric opening or manual opening to feed, if you like our this type of mixing machine, we can make it as your requirements. In addition, according to user needs, we can add the liquid adding device in this popular mixing machine of feed pellet materials.
This machine has simple structure, high operating reliability, and the maintenance is convenient.
The machine has the following advantages:
This Single Shaft Screw Belt Mixer ensures the be mixed materials (powder, semiliquid) in the cylinder body of the small resistance movement. Positive and negative rotation ribbon is installed on the same horizontal axis, forms a low power efficient mixed environment, spiral strip blades made of double layers or three layers, the outer spiral material from two side to the central pool, inner spiral material from the central to both sides, can make the material more vortices in the flow, speed up the mixing speed, improve the mixing uniformity; Adopts pulley drive the cycloid speed reducer drive, relative to the high torque of gear reducer, the elasticity of belt transmission connection has the advantage of the overload protection when driving part.
The discharge way of our mixing machine: big open structure, using pneumatic materials has the advantages of fast discharging, no residual; High fineness material or semiliquid material by using pneumatic butterfly valve, manual butterfly valve or economy applicable manual butterfly valve, pneumatic butterfly valve of semi-fluid sealing is good, but the cost is higher than manual butterfly valve. This machine has simple structure, high operating reliability, maintenance is convenient.

Technical Data of :

Model LG-SLHY1 LG-SLHY2.5 LG-SLHY5.0
Power(kw) 7.5 15 30
Mix capacity per lot(kg/bat) 500 1000 2000
Mixing time(s) 180-300 180-300 180-300
Mixed uniformity ≥95 ≥95 ≥95
