Drying is one of the most important processes in the processing of fish feed. Cylinder dryer machine with its stable performance, outstanding production, low price by the favor of the market. Used for powder, bulk materials, pellet feed and other drying operations.

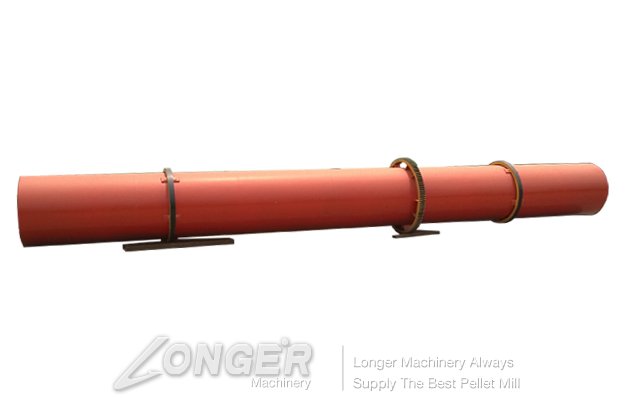

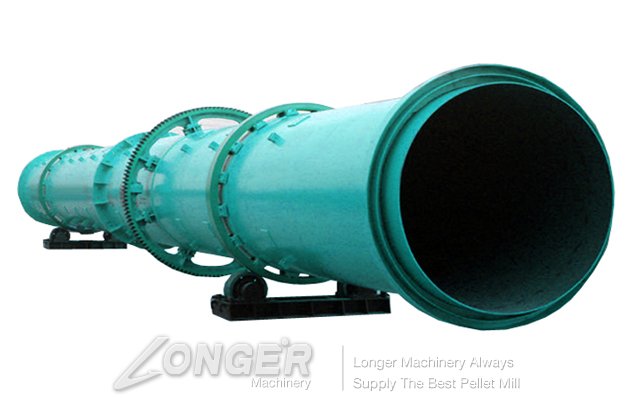

1,Cylinder Dryer Machine
Cylinder dryer machine is one of the traditional drying equipment, reliable equipment operation, flexible operation, strong adaptability and high processing capacity, widely used in metallurgy, building materials, chemical industry, chemical fertilizer, coal, ore, sand, clay, kaolin, sugar etc.
2,Cylinder Dryer Components
Cylinder dryer is a new type of special drying equipment composed of a heat source, scattering device, belt feeding machine, rotary drum, belt type discharging machine, a fan, unloader and distribution cabinet .
3,Cylinder Dryer Working Principle
Cylinder dryer machine is mainly composed of a rotary body, lifting plate, driving device, supporting device and a sealing ring and other components. The dryer is a cylinder which is slightly inclined to the horizontal direction. The material is added at the high end, the high temperature hot flue gas and the material and flow into the cylinder. The material on the inner wall of the cylinder is used to copy the material, and the contact surface of the material and the air flow is increased to improve the drying rate and promote the material forward. The dried product is collected from the bottom of the bottom.
4,Cylinder Dryer Features
(1)The dryer has strong anti overload ability, large amount of treatment, low fuel consumption and low drying cost;
(2)The concurrent flow drying method, flue gas and wet material from the same side into the dryer, can obtain very high evaporation intensity using high temperature flue gas dryer outlet temperature is low, high thermal efficiency;
(3)According to the different nature of the material to change the operating parameters, so that the material in the dryer cylinder body can be a stable whole broken fabric screen, the quality of heat exchange is more adequate;
(4)The new feeding and discharging device, put an end to the drum dryer to block, not continuous, uneven and return materials, and reduce the load of the dust removal system;
(5)A new type of internal structure, strengthen the cleaning and thermal conductivity of the scattered materials, eliminating the stick phenomenon of the inner wall of the cylinder wall, and the adaptability of the material moisture and viscosity;
(6)The dryer to achieve a zero horizontal thrust, greatly reducing the wear and tear of the block, the cylinder running stable and reliable.
