Commercial Walnut Cracker and Sheller Machine For Sale

The cracker and sheller machine for walnut is usded for commercila. Walnut crcacker and sheller machine can break different sizes of walnut meat by adjusting the internal clearance.The walnut grading machine is used to grade the walnut, and

Model: 1 Capacity: Function: Brand: LFM Support Customization: Yes
Features
Walnut shell peeling machine is mainly used for peeling thin-skinned walnuts. Instead of manual peeling, save time and effort.

Walnut shelling and quipment structure:

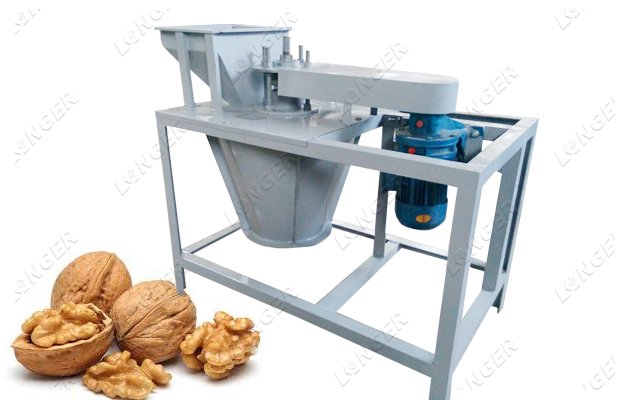

The walnut shelling machine is composed of a frame, a fan, a rotor, a single-phase motor, a screen (two sizes), a hopper, a vibrating screen, a transmission gear, and a chain.

Walnut cracker and sheller working principle:

After the equipment is running normally, the walnuts are put into the hopper quantitatively, uniformly and continuously. The walnuts are broken under the repeated blows, frictions and collisions of the rotor. The walnut kernels and broken shells pass through the rotating wind pressure and blow A screen with a certain aperture (a large-hole screen is used for the first threshing, and the small skin fruits after cleaning are replaced with a small-hole screen for the second peeling) to filter and separate. The walnut shells and grains are blown out of the body by the blowing force of the rotating fan, and the heavier fruits are screened through a vibrating screen to achieve the purpose of cleaning.


walnut cracker and sheller machine for sale
Technical Data

Machine Name

Voltage/powder

Size

Elevator

0.75kw

0.5*0.3*3.5m

Sorting machine(three stage)



2.2kw/380V/50hz



3.2*1*2m

Elevator

0.75kw

0.5*0.3*3.5m

Shelling machine

1.5kw/380V/50hz

Capacity:150kg

0.65*0.65*1.2m

 Crush rate:8%

Shelling rate:95%

packing size::0.75*0.8*1.4m

weight:260kg



Elevator

0.75kw

0.5*0.3*3.5m

Separator machine

powder:3K



voltage:380V

size:2.3*0.8*1.6M

Separator rate:90--95%
