Features

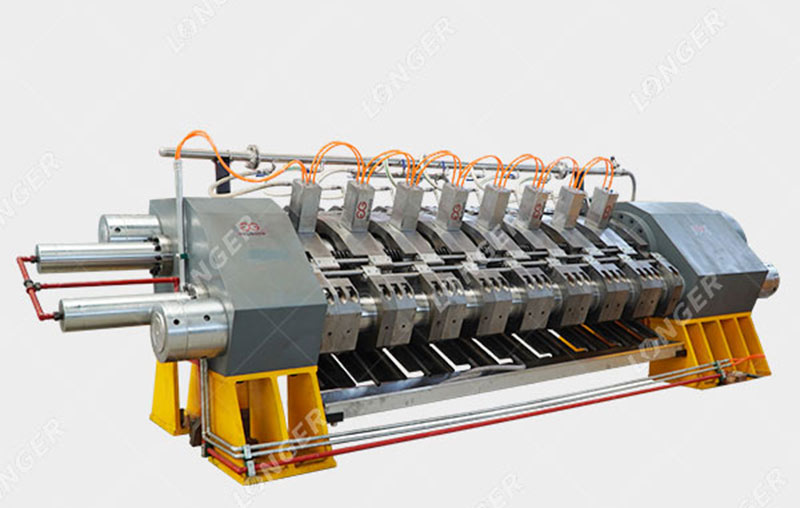

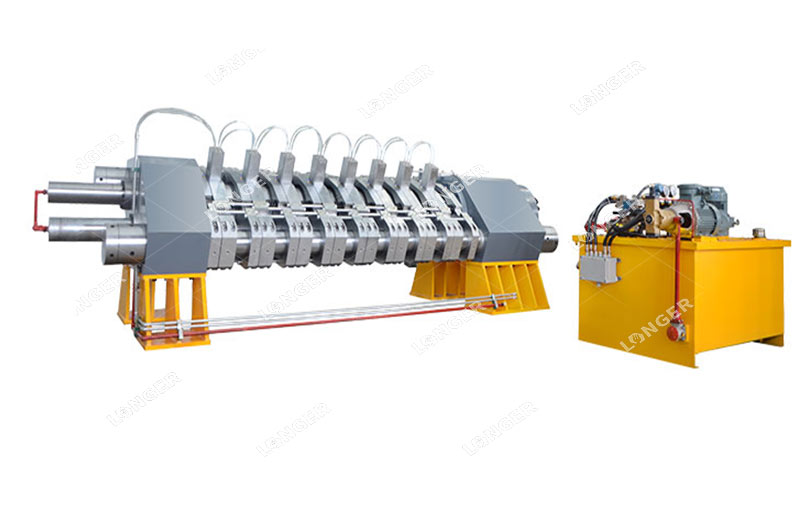

Horizontal Press Box Structure
Compared with conventional models, this design shortens the oil outlet path and improves oil extraction efficiency.
High Hydraulic Working Pressure
The hydraulic pump valve system pressure can reach up to 45MPa, and the material pressure can reach 50-55MPa, ensuring thorough solid-liquid separation.
Composite Metal Mesh Filtration Technology
Eliminates traditional filter cloth by using a combined metal mesh filter structure, enabling automatic filtration and significantly reducing consumables and maintenance workload.
Fully Automatic PLC Intelligent Control
The whole process of feeding, pressing, cake discharging, and conveying is automated, reducing labor costs and improving production efficiency.
Closed Continuous Production
Fully enclosed design ensures environmental hygiene and oil quality during production, allows continuous non-stop operation, and effectively improves production efficiency.
Working Process
Cocoa Liquor Feeding: Pre-ground cocoa liquor is pumped or manually loaded into the press chamber.
Pressing Phase: The machine applies intense pressure, squeezing out cocoa butter through fine filtration plates.

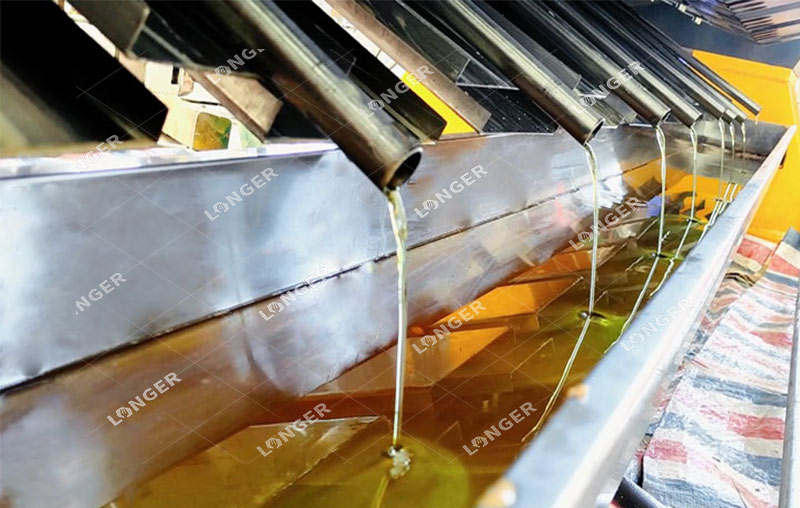

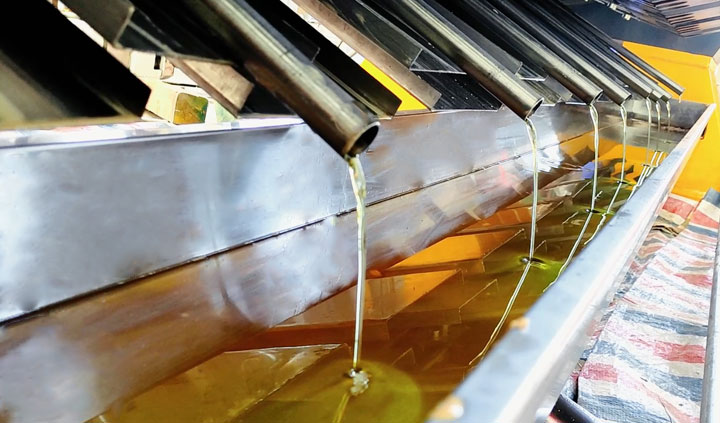

Butter Collection: Extracted cocoa butter is collected through outlet valves and sent for filtration and cooling.
Cake Ejection: Remaining cocoa cake is automatically ejected or scraped from the mold for further grinding into cocoa powder.
Applications of cocoa butter press machine
This equipment is widely used in chocolate manufacturing, the beverage industry, the baking industry, functional foods, and health product production.
