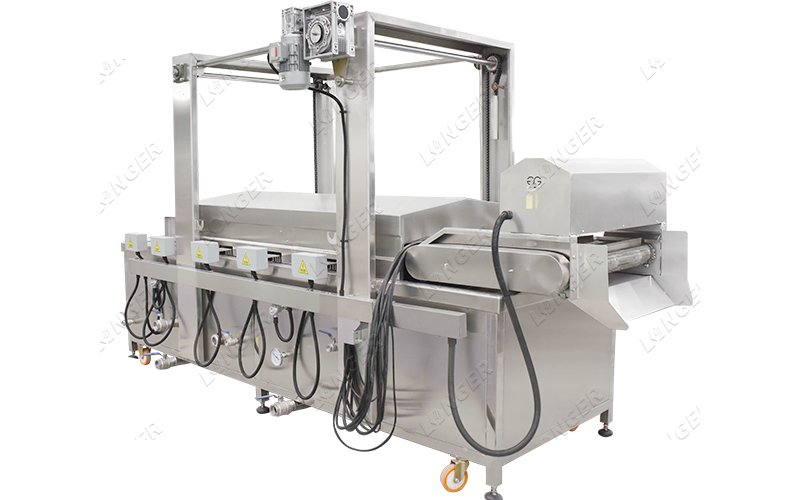

Industrial Peanut Fryer Groundnut Frying Machine

This industrial peanut fryer machine uses electricity or gas as heating energy, temperature is controllable, production is automated, and the process is safe and sanitary.

Model: LG-LTE5000A LG-LTG5000A Capacity: 500kg/h Function: Continuous frying peanuts Brand: LFM Support Customization: Yes
This industrial peanut fryer machine adopts 304 stainless steel as a whole, which is safe and harmless to the human body. Suitable for frying a variety of materials, such as peanuts, cashews, beans, French fries, potato chips, etc. The frying time and temperature can be adjusted according to the different materials to be processed, with high degree of automation and cost of peanut frying machine is low.
peanut fryer
Features of Industrial Peanut Fryer:
1.Stainless steel material. The whole body of groundnut frying machine is made of 304 stainless steel, which is harmless to the human body, safe and hygienic, and has a long service life.
2.The temperature is controllable. The temperature control range is from 1 to 300 degrees, with ultra-high temperature protection.
3.Constant temperature deep frying. Ensure that the temperature and time of the fried food are consistent, and the quality of the fried food is high.
4.Oil and water separation. Residues in the food can automatically sink into the water to keep the oil surface clean and extend the life of the oil.
5.Adjustable frequency conversion. Double mesh belts convey food, and the mesh belt speed is adjustable by frequency conversion to meet various technological requirements.

Advantage of Groundnut Frying Machine:
The energy is diverse. Use electricity, liquefied gas or natural gas as heating energy.
Fully automatic. It is composed of an automatic conveying system, a smoke exhaust system, and an electric control system.
long lasting. The automatic filter can greatly extend the service life of frying oil without frequent oil changes.
low cost. Continuous work improves the working efficiency of the fryer and effectively reduces the cost of peanut frying machine.
Oil and water separation. Reduce the acid value and peroxide value of oil products, improve the quality of fried products.
peanut frying machine

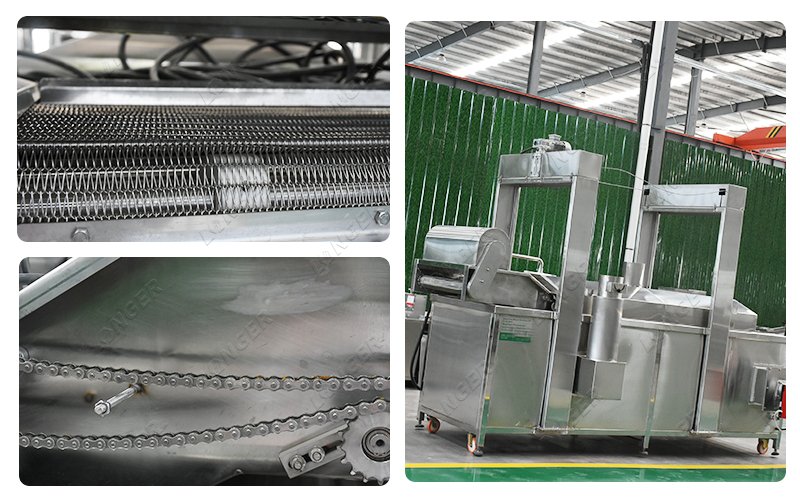

Structure of Industrial Peanut Fryer:
It is composed of a pot body, an insulation layer, a conveying system, a heating system, a filter system, and a smoke exhaust system.
(1) Pot body: The pot body is the core part of the machine. It is made of stainless steel and is easy to clean. The outer shell is also made of stainless steel.
(2) Conveyor system: mainly composed of conveyor belt, reducer and mesh belt frame. The mesh belt and bracket can be hoisted out of the pot as a whole, which is convenient for cleaning and maintaining the machine.
(3) Heating system: composed of electric heating tubes. Optional electric heating and gas heating.
(4) Circulating filtration system: equipped with high temperature oil pump, oil storage tank, oil filter, recyclable frying oil and filter residue.
(5) Smoke exhaust system: There are two exhaust ports on the side of the hood, which can discharge the smoke of the fryer into the pot.
Technical Data
Model LG-LTE5000A LG-LTG5000A
Heating type Electric Gas
Dimension(mm) 5200*1400*2200 5200*1900*2200
Capacity(kg/h) 500 500
Weight(kg) 1200 1600
Mesh belt width(mm) 800 800
Oil capacity(L) 1230 1850
Power(kw) 1.5+0.75+120 1.5+0.75
Gas consumption / 27-34m*3
