Chocolate Chips Depositing Machine Making Chocolate Chips in Factory

We are a supplier of chocolate chipsdepositing machinein China. The high-efficiency chocolate chips making machineis a special equipment for producing small-particle chocolate raw materials. How are chocolate chips made in a factory?The drop

Model: 1 set Capacity: Function: chocolate chips making Brand: LFM Support Customization: Yes
Features
We are a supplier of chocolate chips depositing machine in China. The high-efficiency chocolate chips making machine is a special equipment for producing small-particle chocolate raw materials.

How are chocolate chips made in a factory? The drop-shaped chocolate on the PU conveyor belt is poured directly and cooled by the cooling channel through the conveyor belt. This chocolate chips depositing machine has the characteristics of convenient control and operation, wide range and large production capacity. Chocolate, the weight and temperature of the chocolate chips, the chocolate chips can be button-shaped or dome-shaped.
chocolate chips depositing
Features
 of Chocolate Chips Depositing Machine:
l The central controller controls all operating parameters, and the operation is simple.
l All parts that are in contact with the processing parts and food are made of stainless steel, which is safe and healthy, and harmless to the human body.
l The shape or weight of the chocolate drop can be easily changed by changing the mold to meet the needs of new products.
l Servo-controlled or pneumatically driven drip irrigation piston improves the accuracy of drip irrigation.
l The chocolate chips making machine has various belt widths, from 400 to 1200mm.
l The cooling circulation system reduces the loss of cooling air and improves the cooling efficiency.

How are chocolate chips made in a factory?
l The recommended storage temperature of chocolate sauce is 35-40℃, which can be adjusted and controlled according to the chocolate recipe, external temperature and room temperature.
l The cooling is accomplished by the cooling system in which the compressor and the evaporator circulate. When the temperature of the cooling tube reaches 5-10°C, the production of chocolate chips can begin.
l Adjust the moving distance of the dripping piston according to the weight of the chocolate chip.
chocolate chips making machine

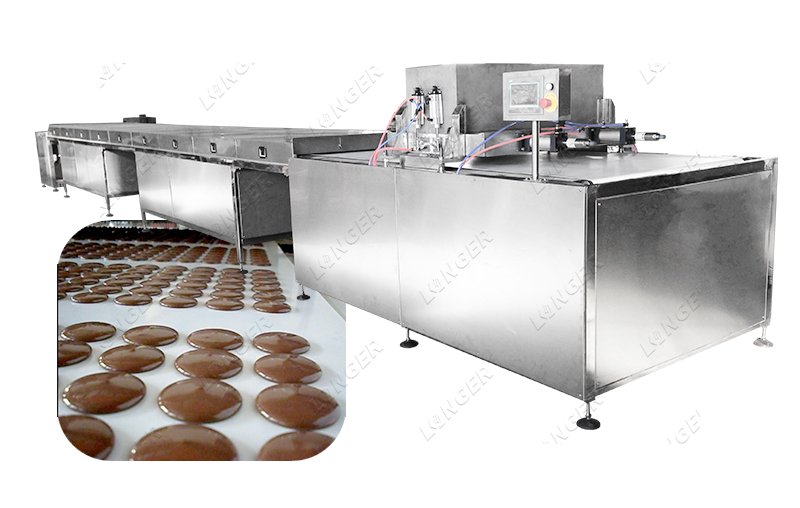

The chocolate chips depositing machine is mainly composed of chocolate chip pouring part, lifting part, rack and cooling system.
Technical Data
Model LG-CDJ600 LG-CDJ800 LG-CDJ1000 LG-CDJ1200
Width of conveyer
belt (mm)
600mm 800mm 1000mm 1200mm
Particle weight(g) 0.1 - 3 0.1 - 3 0.1 - 3 0.1 - 3
Brand of Compressor Emerson Emerson Emerson Emerson
Temperature in
Cooling Tunnel
0- 10℃ 0 - 10℃ 0- 10℃ 0 - 10℃
Length of Cooling
Tunnel(m)
10 18 18 18
