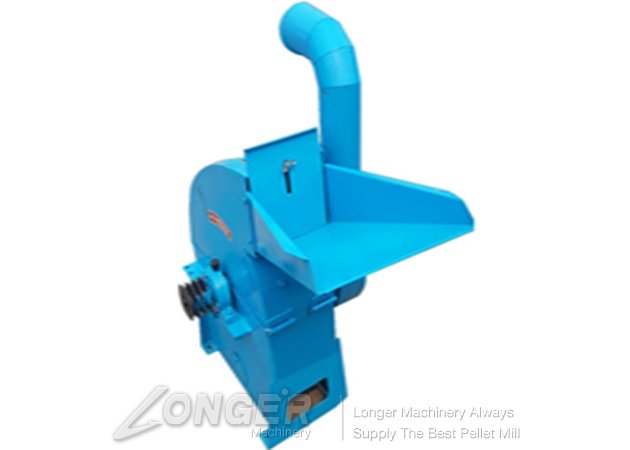

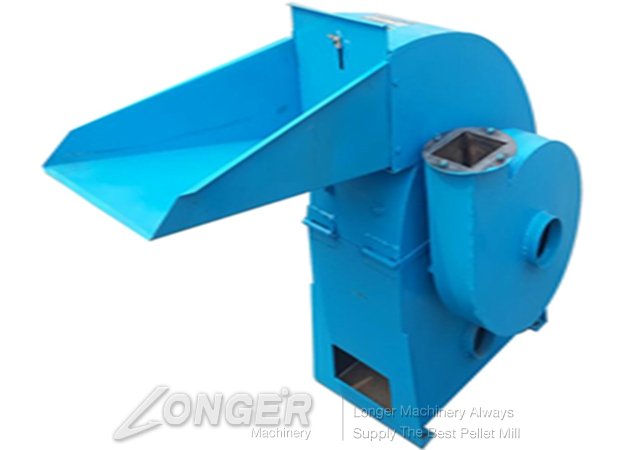

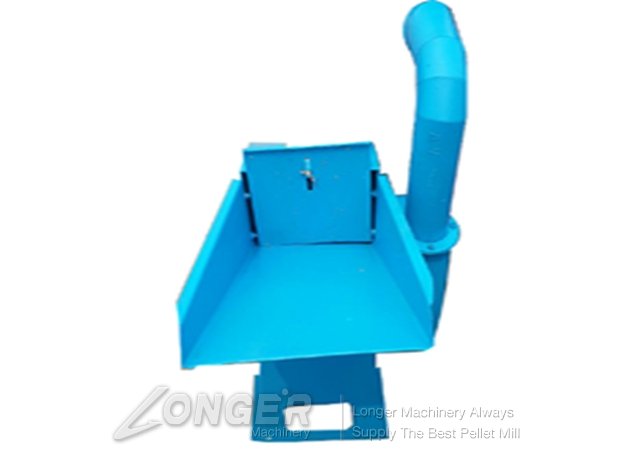

Straw Hammer Mill

MOQ:1 Set/Sets
Brand:Longer Machinery
Pay Method:WEST UNION L/C T/T CASH
Warranty Time:12 Months
Supply AbilitySupply Ability:100
PortPort:Qingdao Port|Tianjin Port

•24/7 online support   •Certification:CE

Leave Message Get PriceGet Price
Product Details

Features of :

1.The motor and rotor are installed in the same heavy-duty base, using coupling direct drive, rotor passes accurate dynamic balancing test, the hammers are arranged symmetrically.
2.Unique Feeding Design, the feeding inlet is made at the side of the device to make feeding easily.
3.The shell is welded by steel plate, the site in the crush room which connects to the materials all use the wearable and commutative parts and double wear plate.
4.Hammers adopts special abrasion resistent treatment technology, extend its lifetime greatly.

Technical Data of :

Model Power Size Capacity Thickness of steel plate
9FQ-36 5.5 400*550*850mm 200-300kg/h 3.0
9FQ-36New 5.5-7.5 650*600*1050mm 200-600kg/h 3.0
9FQ-40 7.5 700*650*1050mm 300-800kg/h 3.0
9FQ-42 11 780*700*1100mm 400-1000kg/h 3.0
9FQ-50 15   1500-3000kg/h 5.5
9FQ-50-40 22 100*100*60cmmm 3000-5000kg/h 6.0
9FQ-50-40 big hopper 30   4000-8000kg/h 6.0
