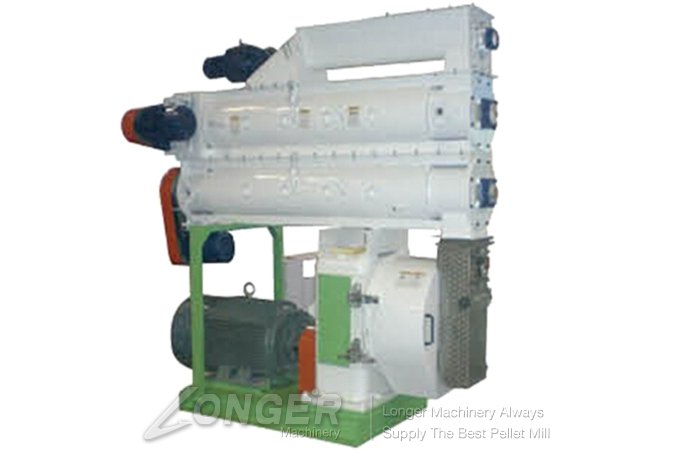

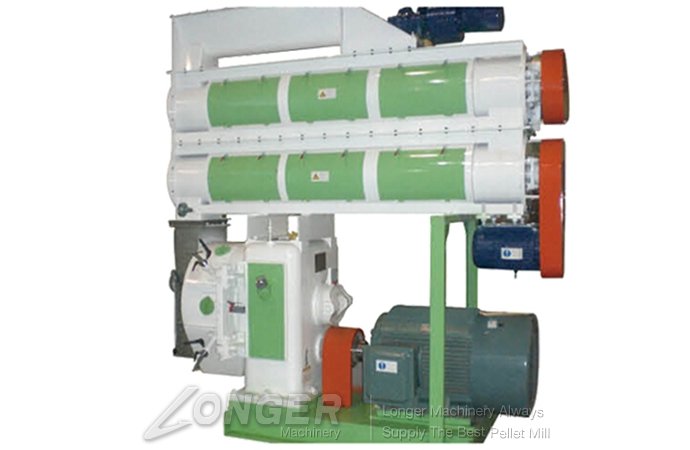

Ring Die Pellet Machine

MOQ:1 set Set/Sets
Brand:Longer Machinery
Pay Method:WEST UNION L/C T/T CASH
Warranty Time:12 Months
Supply AbilitySupply Ability:100 sets/month
PortPort:Qingdao Port|Tianjin Port

•24/7 online support   •Certification:CE

Product Details

Features of :

1. Main engine drives with high precision gear, ring die in quick detaching encircling hoop type ,output higher 20% than belt drive.
2. The complete machine transmission parts include electric motor with high quality bearing, ensure high efficiency ,stable and low noise drive.
3. Large type strengthen feeding conditioner in entire stainless steel with frequent speed control.ensure the high quality of pellet .

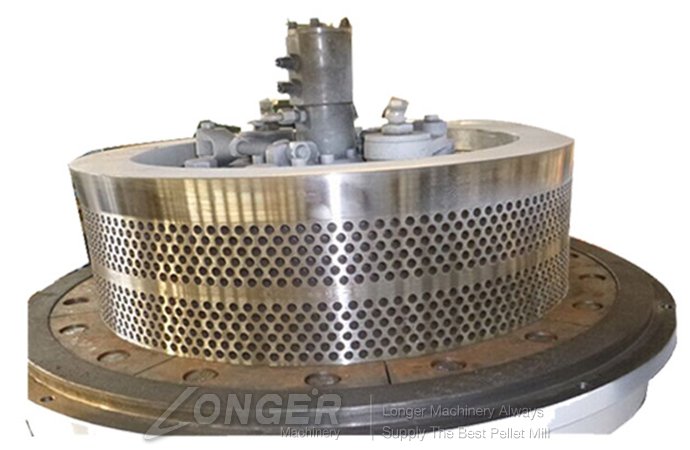

4.  Adopt international advanced ring die processed by heat treatment vacuum furnace, lengthen useful lift and pellet is smooth with high quality.
5.  With full stainless steel door, flume and pull cutter which is convenient ,reliable,
6.Customized pellet machine with double layers or three layers.
7.Pellet machine can work continuously for 24 hours, no need to stop.
8. Using frequency conversion,to avoid the nonuniform feeding due to unstable voltage.
9.Added humidity control function,make sure the humidity of feedstock is uniform and improve the quality.

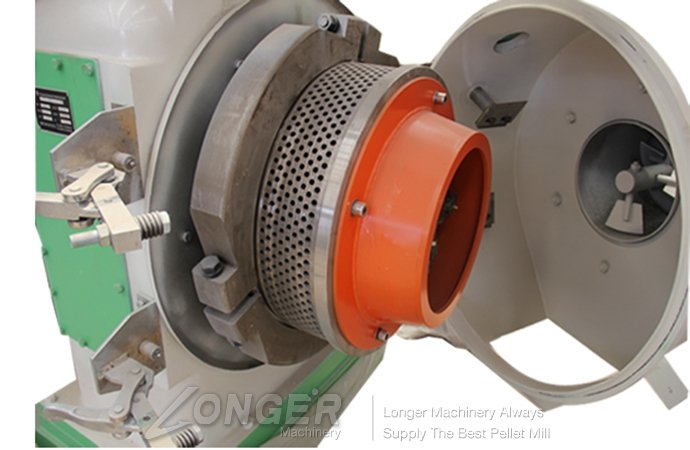

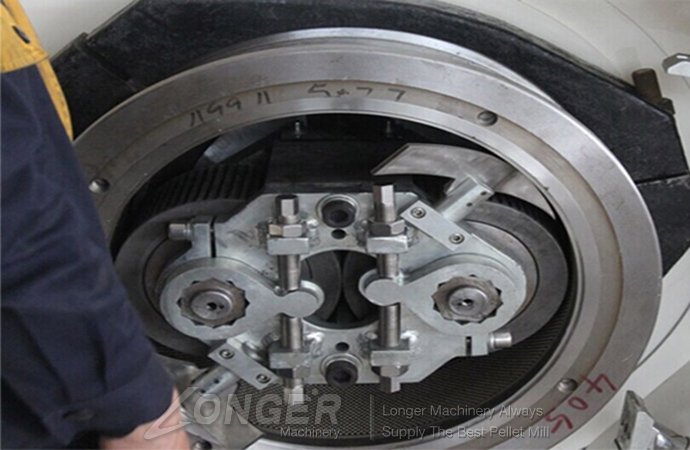

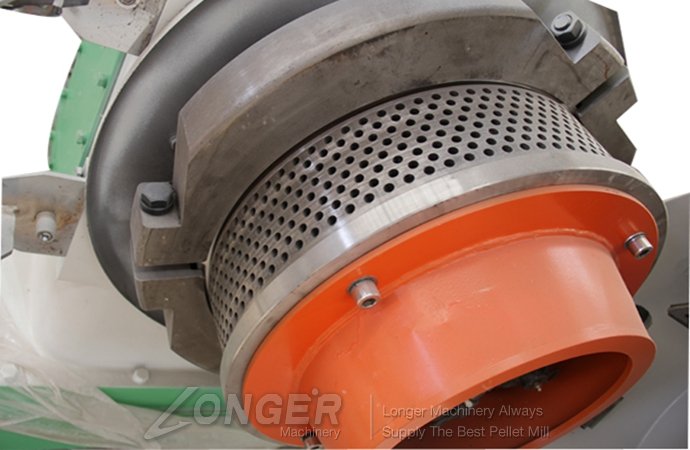

10.The ring die uses quick-release type without beam clamp,high-quality stainless steel are also adopted,and disassembly is easy.
11. Customer can chose ruggedized ring die,improve the service life efficiently.
12.All of the interior accessories use excellent forging parts to make sure the machine run stably and reduce the failure rate.
13.Having multiple national design patents for inventions.

Technical Data of :

Type Main engine power
(kw)
Productivity
(t/h)
Feeder power
(kw)
Conditioner power
(kw)
Ring die diameter
(mm)
Granule size
(mm)
LG-SZLH35 55 2-5 1.5 2.2 350 1.0-12
LG-SZLH42 110 3-12 1.5 4 420 1.0-12
LG-SZLH508 132/
160
5-20 1.5 5.5 508 1.0-12
